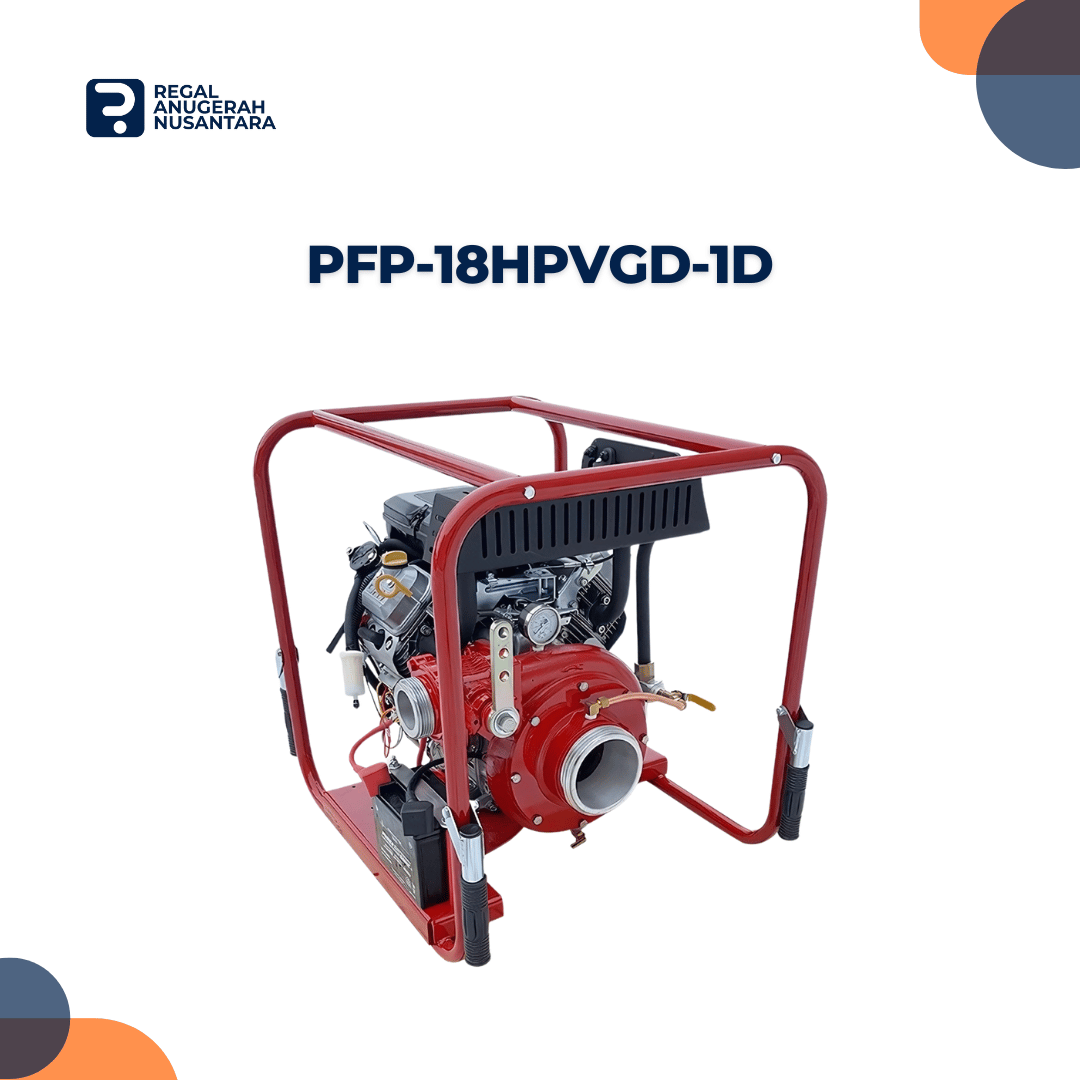

Description

Engine Specifications:
– Vanguard. model 3564, air cooled engine
– 2-cylinder, 4-stroke gasoline engine
– Electric start with recoil start as backup
– 6 gallon (22 l) detachable fuel tank

Pump Specififications:
– C.E.T. single stage centrifugal pump
– Pump body made from high resistant aluminum alloy
– Bronze impeller
– Mechanical shaft seal
– Stainless steel pump shaft
– Exhaust priming system, guaranteed up to 20’ (6 meter lift)
– One 2-1 ⁄2’’ (65mm) delivery outlet with Fire Type swing-out valve
– One 4’’ (100 mm) suction inlet
– Dimensions: L 700 x W 559 x H610 (mm)
– Weight: 78 kg

Performance:
– 390 GPM @ 25 PSI
– 310 GPM @ 50 PSI
– 130 GPM @ 100 PSI
– 45 GPM @ 125 PSI
