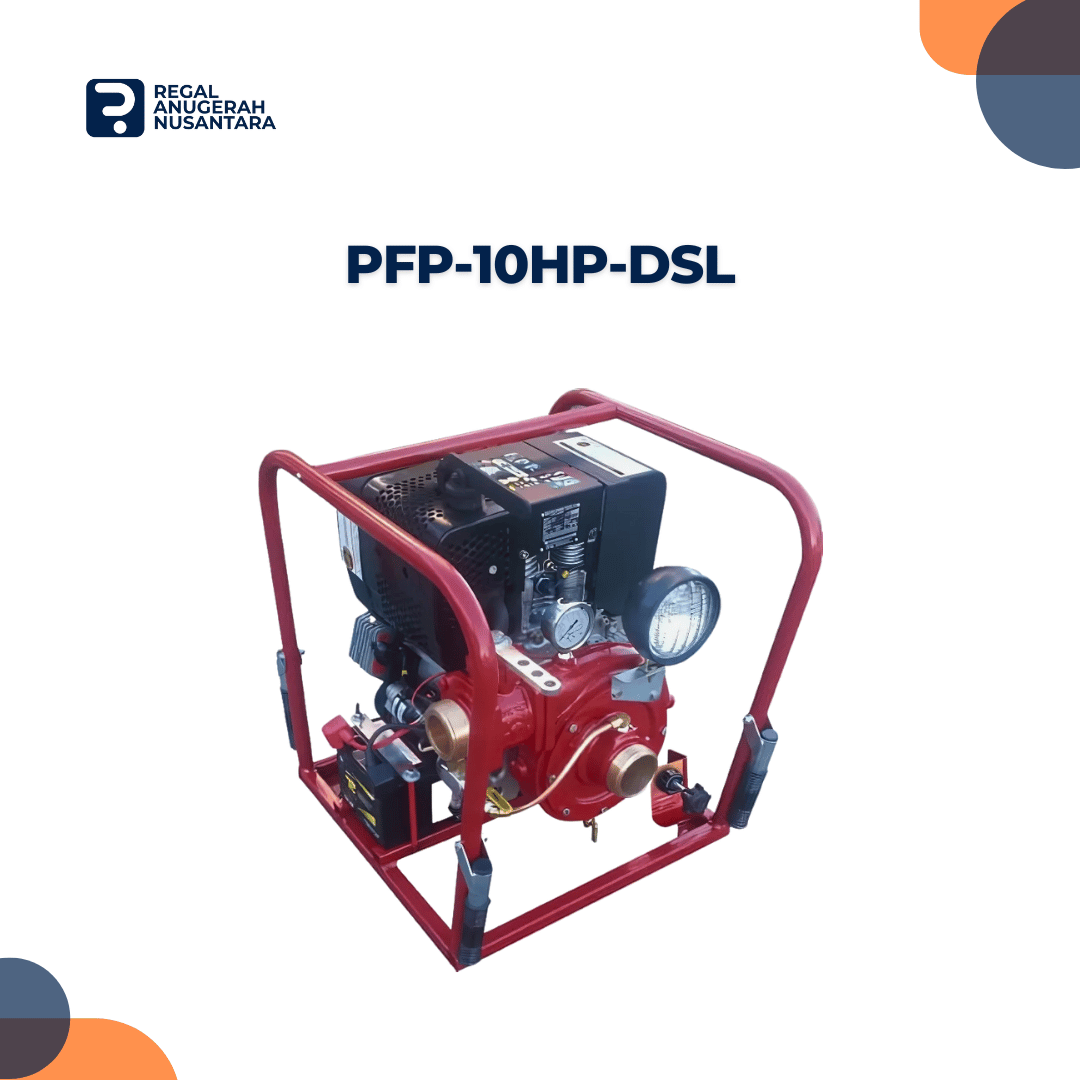

Description

Engine Specifications:
– 1B40 Hatz air cooled engine
– Single-cylinder 4-stroke Diesel engine
– EPA TIER IV and CARB TIER IV compliant
– 12V electric start with recoil & recoil start as backup
– 1.32 gallons (5l) integrated fuel tank

Pump Specifications:
– Direct drive C.E.T.single stage centrifugal pump
– Pump body made from resistant aluminum alloy
– Bronze impeller
– Mechanical shaft seal
– Exhaust priming system,guaranteed up to 20’ (6 meter) lift
– One 2 1/2” (65 mm) delivery outlet with Fire Type swing-out valve
– One 2 1/2” (65 mm) suction inlet
– Dimensions: L 592 x W 521 x H 584 (mm)
– Weight: 84 kg

Performance:
– 250 GPM @ 10 PSI
– 230 GPM @ 25 PSI
– 165 GPM @ 50 PSI
– 115 GPM @ 75 PSI
– 70 GPM @ 85 PSI
