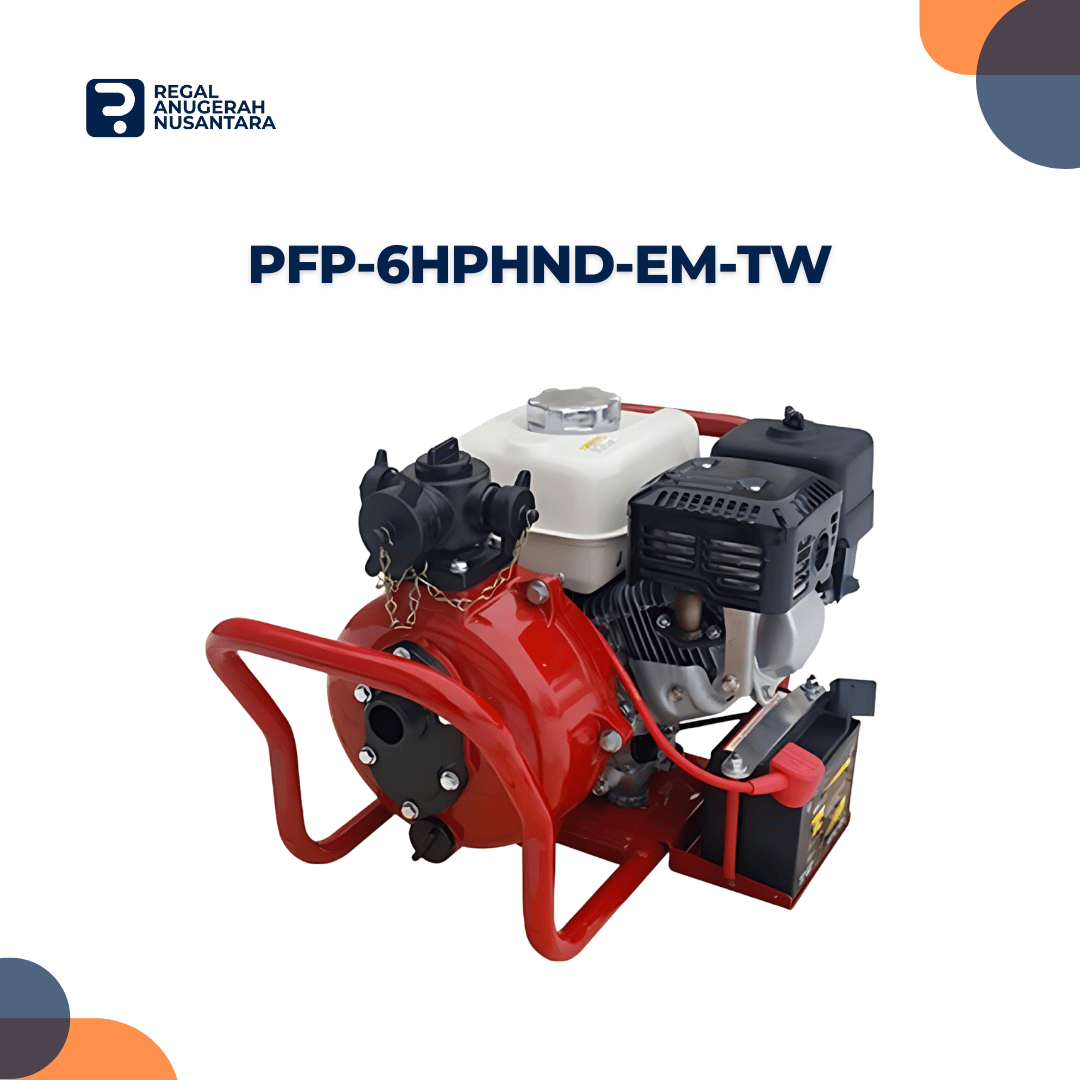

Description

Engine Specifications:
– GX200 Honda air cooled engine
– Single cylinder, 4-stroke gasoline engine
– 12V electric start with recoil start as backup
– 0.8 gallon (3.1L) integrated fuel tank
– Charge coil 12V 3A

Pump Specifications:
– C.E.T dual stage centrifugal pump
– Pump body made from aluminum
– Aluminum impeller
– Mechanical shaft seal
– Self priming system
– Two 1” (25 mm) delivery outlets and one 1.5” (38 mm) NPSH delivery outlet
– One 1.5” (38 mm) NPSH suction inlet
– Dimensions: L 620 x W 470 x H 410 (mm)
– Weight: 42 kg

Performance:
– Maximum flow : 75 GPM
– Max. pressure : 140 PSI
– 70 GPM @ 10 PSI
– 65 GPM @ 50 PSI
– 45 GPM @ 100 PSI
– 35 GPM @ 125 PSI
