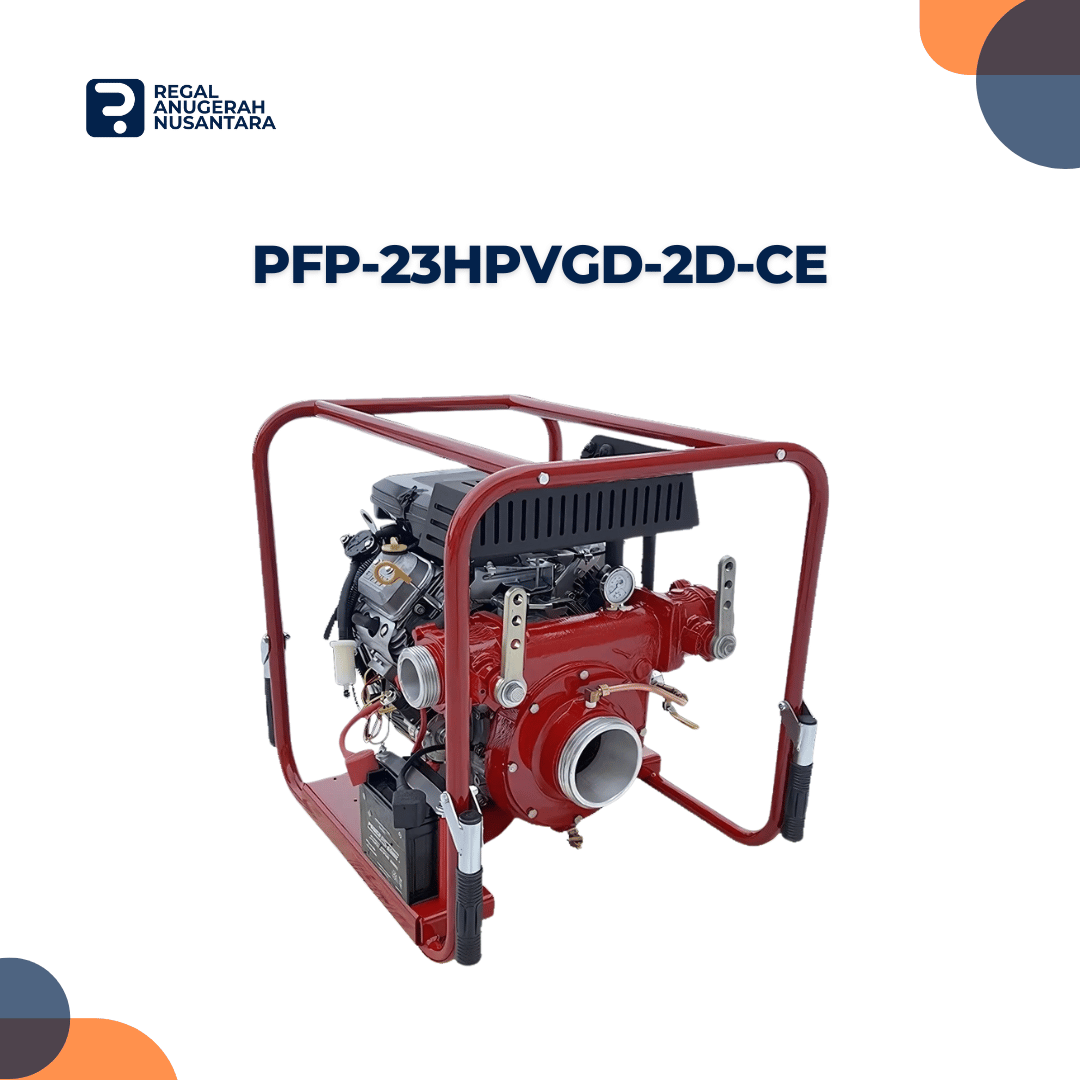

Description

Engine Specifications:
– Vanguard, model 380000, air cooled engine
– V-Twin cylinder, 4-stroke gasoline engine
– Electric start with recoil start as backup
– 2.25 Gallons (8.5 L) integrated fuel tank

Pump Specififications:
– C.E.T. Single stage centrifugal pump
– Pump body made from high resistance aluminum alloy
– Bronze impeller
– Mechanical shaft seal
– Exhaust priming system, guaranteed up to 6 mtr lift
– Two 2 1/2” (65 mm) delivery outlets with Fire Type swing-out valve
– One 4” (100 mm) suction inlet
– Dimensions: L630 x W 667 x H654 mm
– Wet weight: 90 kg

Performance:
– MAX FLOW: 650 GPM
– MAX PRESSURE: 115 PSI
– 430 GPM @ 25 PSI
– 310 GPM @ 50 PSI
– 110 GPM @ 100 PSI
